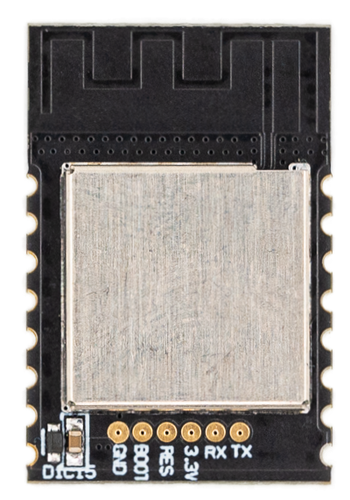

The Shelly X1 module offers full integration with the Shelly ecosystem, providing built-in support for cloud connectivity, mobile app control, and free over-the-air (OTA) updates.
ShellyX1 enables fully managed smart functionality out of the box - no external hub required.
An integrated EMI shield helps minimize electromagnetic interference, contributing to more consistent operation and improved reliability in electrically noisy environments.
The Shelly X1 module offers full integration with the Shelly ecosystem, providing built-in support for cloud connectivity, mobile app control, and free over-the-air (OTA) updates.
ShellyX1 enables fully managed smart functionality out of the box - no external hub required.
An integrated EMI shield helps minimize electromagnetic interference, contributing to more consistent operation and improved reliability in electrically noisy environments.
Depending on availability and quantity, lead time may vary.
Depending on availability and quantity, lead time may vary.
| Chipset | ESP32-C3 embedded, 32-bit RISC-V single-core processor, up to 160 MHz |
| Memory | 400 KB SRAM (16 KB for cache), 8 MB flash |
| Bluetooth® LE | Bluetooth 5 |
| Wi-Fi | 2.4 GHz, IEEE 802.11 b/g/n-compliant |
| Antenna | On-board PCB antenna |
| Operating voltage | 3.0~ 3.6 VDC |
| Operating temperature | -40°C ~ 105°C |
| Height | 24 mm/0.945 in |
| Length | 16.5 mm/0.650 in |
| Width | 3.1 mm / 0.122 in (shield incl.) |
